ScanSnap s1500

ScanSnap s1500

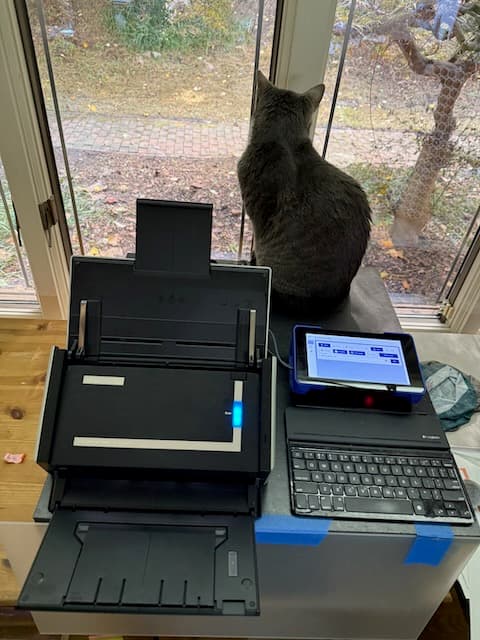

scanner photo (Yes, I could have cropped the photo, but… cat tax 😺)

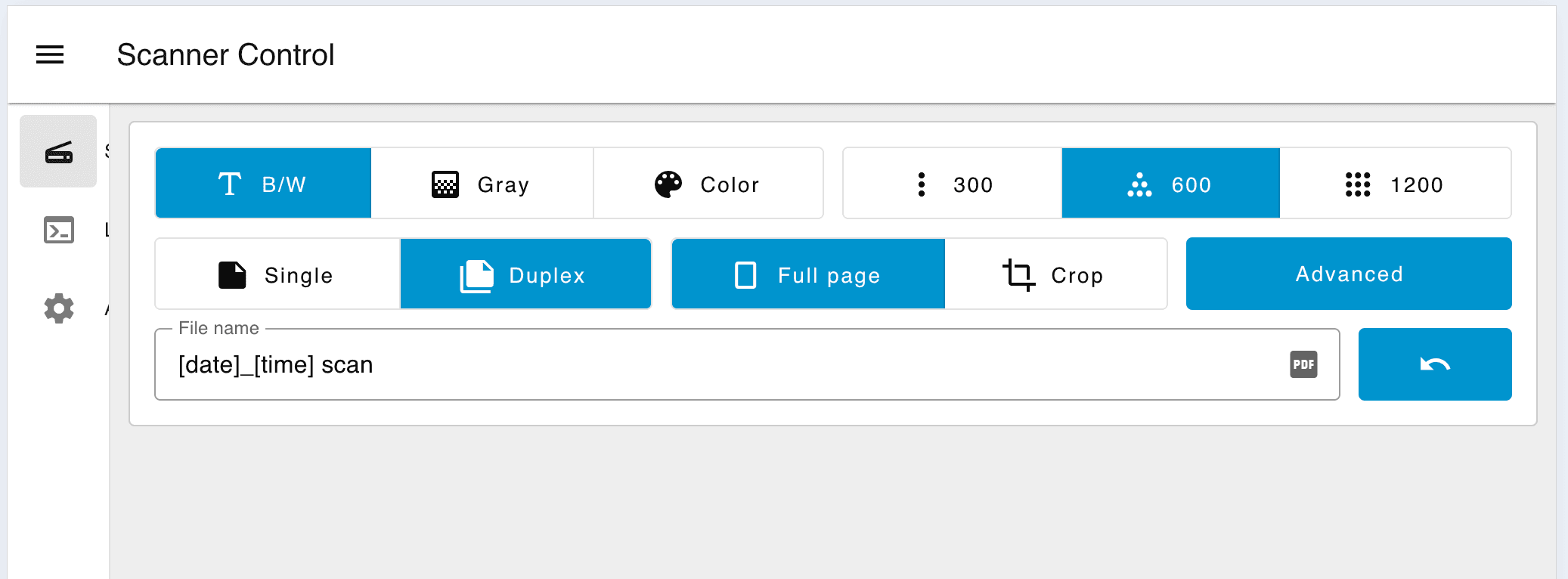

scanner control screenshot

Many thanks to:

RPi image

  1. https://www.raspberrypi.com/software/
  2. Configure the installer:
  • Set hostname
  • Enable wifi
  • Set user/password
  • Enable SSH

Setup the RPi

sudo apt-get update
sudo apt-get upgrade
sudo apt install sane sane-utils scanbd git imagemagick -y
sudo apt install \
  netpbm \
  ghostscript \
  poppler-utils \
  imagemagick \
  unpaper \
  util-linux \
  tesseract-ocr \
  parallel \
  units \
  bc

cd $HOME
git clone https://github.com/rocketraman/sane-scan-pdf.git
/etc/scanbd/scanbd.conf
# edit the `scriptdir=` line
    scriptdir=/etc/scanbd/scripts

# add this to the `action scan` section
    desc = "Scan to file and share"
    script = "scan.sh"

Create this file

/etc/scanbd/scripts/scan.sh
#!/bin/sh
now=`date +"%Y-%m-%d-%H%M"`
/home/pi/sane-scan-pdf/scan -d -r 300 -v -m Lineart --skip-empty-pages -o /home/pi/scans/scan-$now.pdf
sudo chmod +x /etc/scanbd/scripts/scan.sh

Upload to SMB share

Mount a remote SMB share, to upload scans to. I set it up pointing to the input (consumption) folder on my paperless-ngx  server.

sudo apt install cifs-utils

below is from Google, and edited

  • Mount the SMB Share (Persistent - using /etc/fstab): For the share to be mounted automatically on boot, add an entry to your /etc/fstab file. This is generally preferred for permanent mounts. Create a credentials file (optional but recommended): This keeps your username and password out of the fstab file directly. Create a file (e.g., ~/.smbcredentials) and add your username and password:
    username=YOUR_SMB_USERNAME
    password=YOUR_SMB_PASSWORD

Set appropriate permissions for this file:

    chmod 600 ~/.smbcredentials

Edit /etc/fstab. Open the file with a text editor (e.g., nano):

    sudo nano `/etc/fstab`

Add a line similar to the following, adjusting the path to your credentials file and the mount options as needed:

    //SERVER_IP/SHARE_NAME /home/pi/myshare cifs credentials=/home/pi/.smbcredentials,uid=1000,gid=1000,nofail 0 0

uid=1000,gid=1000: Sets the ownership of the mounted files to the default pi user (you can find your user’s UID and GID with the id command). nofail: Prevents the system from failing to boot if the network share is unavailable.

  • Test the Mount: After editing fstab, you can test the mount without rebooting:
sudo mount -a

Kiosk mode

Source: https://www.raspberrypi.com/tutorials/how-to-use-a-raspberry-pi-in-kiosk-mode/

sudo raspi-config

  1. Select System Options > Boot / Auto Login > Desktop Autologin: Desktop GUI, automatically logged in as ‘pi’ user.
  2. sudo nano .config/wayfire.ini
  3. Add:
[autostart]
chromium = chromium-browser https://raspberrypi.com --kiosk --noerrdialogs --disable-infobars --no-first-run --ozone-platform=wayland --enable-features=OverlayScrollbar --start-maximized --enable-wayland-ime --wayland-text-input-version=3
screensaver = false
dpms = false

Note: I added --enable-wayland-ime --wayland-text-input-version=3 to enable the on screen keyboard

Install on-screen keyboard

sudo apt install wvkbd
Warning

I could never get the on-screen keyboard to work in kiosk mode. It only works in normal mode 😢.
So I ended up using a bluetooth keyboard.

Node Red

Installation

https://nodered.org/docs/getting-started/raspberrypi

bash <(curl -sL https://github.com/node-red/linux-installers/releases/latest/download/update-nodejs-and-nodered-deb)

Config

  1. mkdir /home/pi/node-red-static/
  2. Edit the httpStatic section of node-red settings
/home/pi/.node-red/settings.js
    httpStatic: [
        {path: '/home/pi/node-red-static/',    root: "/static/"},
    ],

Plugins

  1. Hamburger menu
  2. Manage pallette
  3. Install @flowfuse/node-red-dashboard

Flows

Blow are screenshots of the Flow diagrams. The latest code is on github .

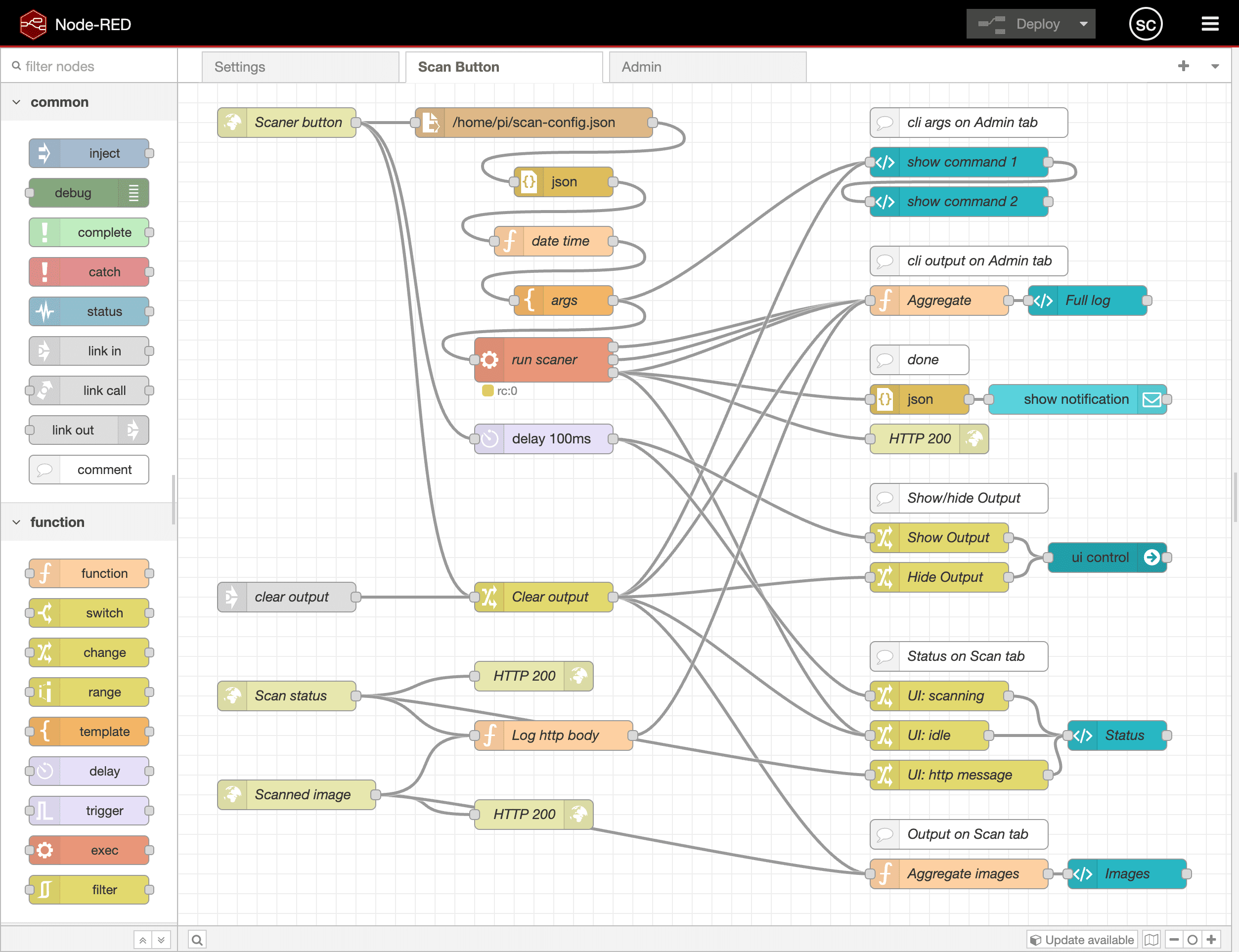

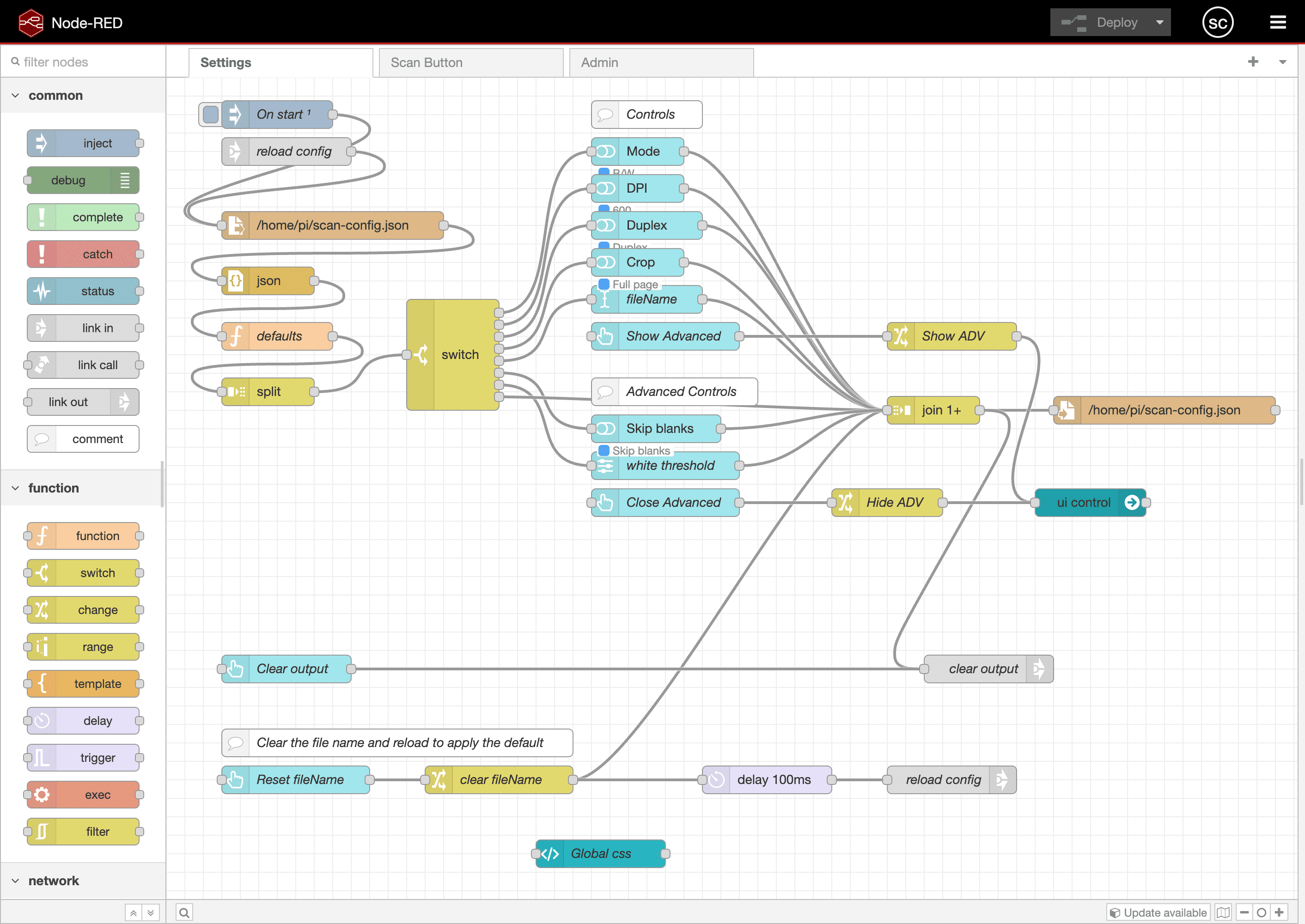

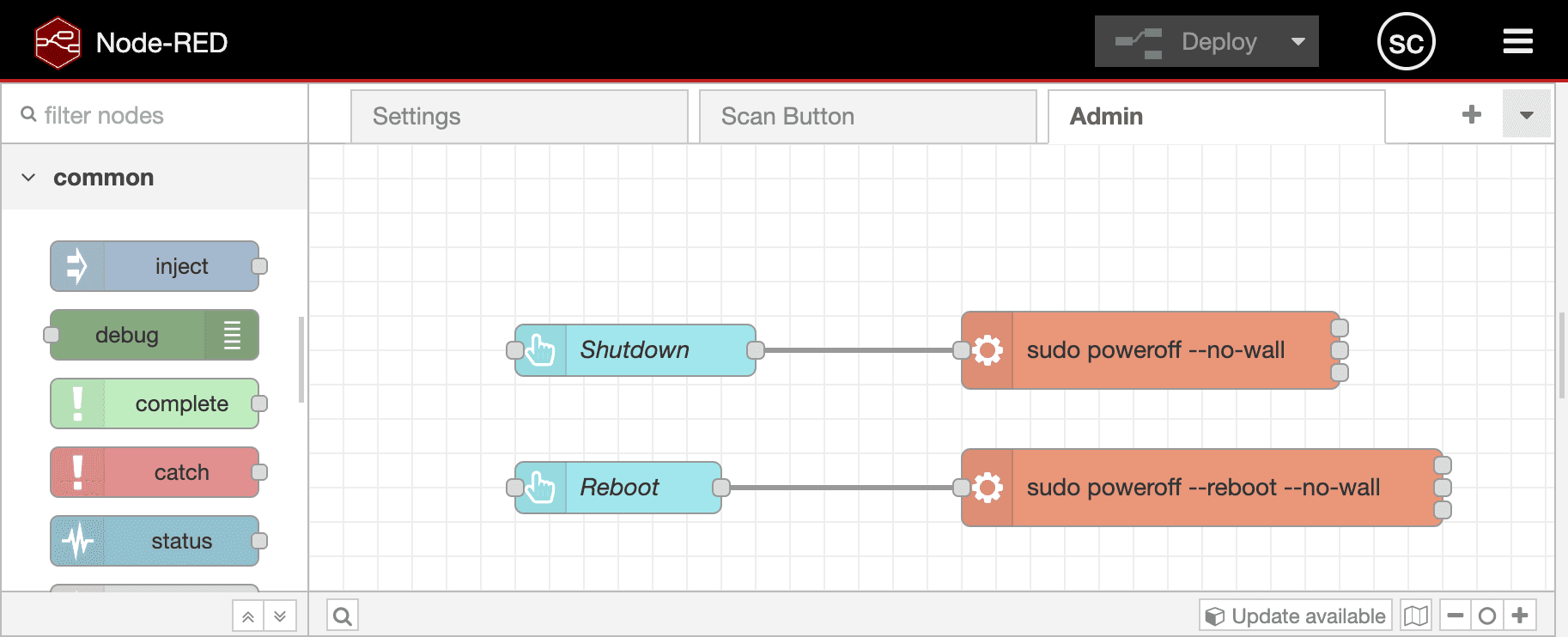

settings flow diagram scan button flow diagram admin flow diagram

Custom scripts

Customize the original trigger script and make a wrapper for the per-page script, so that we can send notifications to nodered. This provides onscreen feedback.

Custom trigger script

/etc/scanbd/scripts/scan.s
#!/bin/sh

# trigger node-red scan
wget -qO- http://scanner.local:1880/scan

# notify and copy to network share
wget -qO- --post-data "status=Uploading..." http://scanner.local:1880/scan-status
mv /home/pi/scans/*.pdf /mnt/paperless/
wget -qO- --post-data "status=" http://scanner.local:1880/scan-status

Custom per page script

/home/pi/scan-per-page-helper
#!/bin/bash
echo scan-per-page-helper: $1

/home/pi/sane-scan-pdf/scan_perpage $1
status=$?

# try to copy to node-red static folder, and notify node-red if success
# blank pages (and errors) aren't converted to pdf, so don't notify node-red
cp $1.pdf /home/pi/node-red-static/ && wget -qO- --post-data "image=$(basename $1).pdf" http://scanner.local:1880/scanned

exit $status

Tell sane-scan-pdf to use custom per page script

mkdir -p /home/pi/.local/share/sane-scan-pdf/
nano /home/pi/.local/share/sane-scan-pdf/defaults
/home/pi/.local/share/sane-scan-pdf/defaults
SCRIPT=/home/pi/scan-per-page-helper

Initial config file

You need to prepopulate the config file so node-red can read items
FIXED: This shouldn’t be needed any more.

scan-config.json
{"dpi":600,"mode":"Lineart","duplex":false,"skipBlank":true,"whiteThreshold":99.6}
